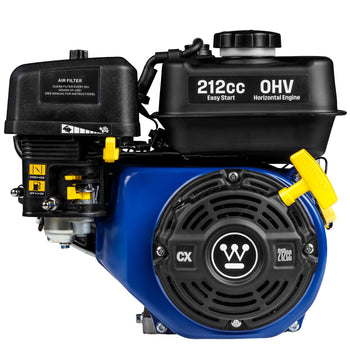

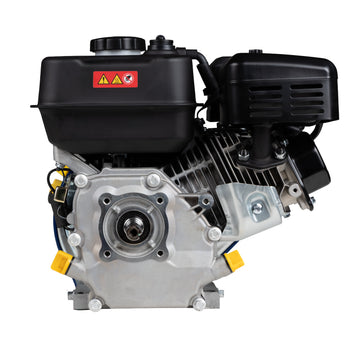

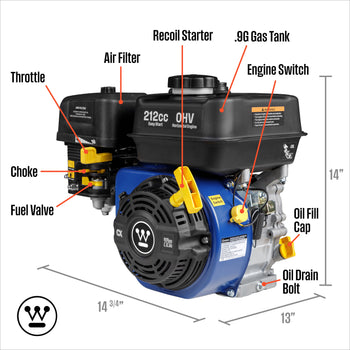

WENG212 212cc 4-Stroke OHV Westinghouse Engine
- 212cc 4-Stroke OHV Westinghouse engine
- Standard ¾" x 2.43" shaft fits most GX200 replacements
- Multi-equipment compatibility for new builds or motor replacement
The Westinghouse WENG212 is a 212cc 4-stroke OHV horizontal shaft engine designed for compatibility and reliable replacement across a wide range of equipment. Built with a standard 3/4" diameter x 2.43" length shaft, 3/16" keyway, and 5/16-24 UNF threaded end, it is designed to fit most GX200-style applications including go-karts, log splitters, pressure washers, air compressors, water pumps, and tillers. A 70 x 55mm bore and stroke delivers consistent performance up to a max speed of 3600 RPM, while forced air cooling helps maintain safe operating temperatures. The engine features low oil shutdown for added protection, a 0.6 quart oil capacity using 10W30, and an adjustable throttle lever for controlled operation. With a 0.9 gallon fuel tank and EPA compliant design, the WENG212 provides a dependable solution for replacing worn or underperforming 212cc engines.

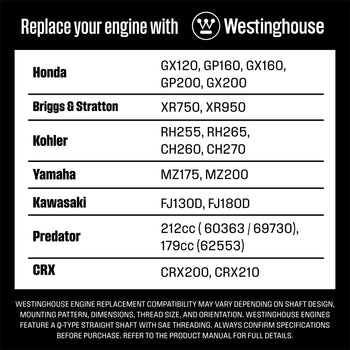

- MULTI-EQUIPMENT COMPATIBILITY: Features a standard ¾ inch x 2.43 inch horizontal shaft with 3/16 inch keyway, tapped with 5/16 inch-24 UNF threads, designed to fit most GX200-style applications including go karts, log splitters, pressure washers, compressors, water pumps, tillers and more
- POWERFUL & RELIABLE: Built with a 212cc 4-Stroke OHV Westinghouse engine delivering dependable power for demanding equipment. Features counterclockwise shaft rotation and forced air cooling for consistent performance in all operating conditions
- LARGE TANK FOR LONGER USE: The 0.9 gallon fuel tank supports extended runtime, reducing downtime for work or play, while the adjustable throttle lever allows for precise speed control across different applications
- HIGH TORQUE PERFORMANCE: Delivers 9.2 ft-lbs of torque with a max speed of 3600 RPM with a 70 x 55mm bore and stroke for strong, consistent power. Features low oil shutdown for protection and a 0.6 quart oil capacity using 10W30 for reliable operation
- LONG LIFE: Durable, EPA Certified Construction: Engineered for longevity with high quality components, optimized lubrication, and EPA compliant operation. Ideal for replacing worn engines on outdoor power equipment
- WESTINGHOUSE WORKS: Westinghouse has been providing quality products to America for over 100 years. This engine is backed by 3 year limited coverage and a nationwide customer service and support network
The Westinghouse WENG212 is a 212cc 4-stroke OHV horizontal shaft engine designed for compatibility and reliable replacement across a wide range of equipment. Built with a standard 3/4" diameter x 2.43" length shaft, 3/16" keyway, and 5/16-24 UNF threaded end, it is designed to fit most GX200-style applications including go-karts, log splitters, pressure washers, air compressors, water pumps, and tillers. A 70 x 55mm bore and stroke delivers consistent performance up to a max speed of 3600 RPM, while forced air cooling helps maintain safe operating temperatures. The engine features low oil shutdown for added protection, a 0.6 quart oil capacity using 10W30, and an adjustable throttle lever for controlled operation. With a 0.9 gallon fuel tank and EPA compliant design, the WENG212 provides a dependable solution for replacing worn or underperforming 212cc engines.
- MULTI-EQUIPMENT COMPATIBILITY: Features a standard ¾ inch x 2.43 inch horizontal shaft with 3/16 inch keyway, tapped with 5/16 inch-24 UNF threads, designed to fit most GX200-style applications including go karts, log splitters, pressure washers, compressors, water pumps, tillers and more
- POWERFUL & RELIABLE: Built with a 212cc 4-Stroke OHV Westinghouse engine delivering dependable power for demanding equipment. Features counterclockwise shaft rotation and forced air cooling for consistent performance in all operating conditions
- LARGE TANK FOR LONGER USE: The 0.9 gallon fuel tank supports extended runtime, reducing downtime for work or play, while the adjustable throttle lever allows for precise speed control across different applications
- HIGH TORQUE PERFORMANCE: Delivers 9.2 ft-lbs of torque with a max speed of 3600 RPM with a 70 x 55mm bore and stroke for strong, consistent power. Features low oil shutdown for protection and a 0.6 quart oil capacity using 10W30 for reliable operation
- LONG LIFE: Durable, EPA Certified Construction: Engineered for longevity with high quality components, optimized lubrication, and EPA compliant operation. Ideal for replacing worn engines on outdoor power equipment
- WESTINGHOUSE WORKS: Westinghouse has been providing quality products to America for over 100 years. This engine is backed by 3 year limited coverage and a nationwide customer service and support network
Specifications
| Model Name | WENG212 |
| Engine Displacement | 212cc |
| Engine Type | 4-Stroke OHV, Single Cylinder |
| Shaft Output | Horizontal |
| Shaft Rotation | Counterclockwise |

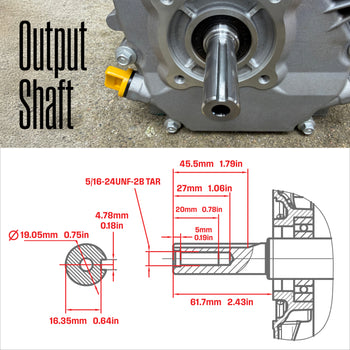

| Shaft Size | 3/4 in. x 2.43 in. (19.05 x 61.7mm) |
| Keyway | 3/16 in. (4.78mm) |
| End Tapped | 5/16-24 UNF |
| Max Torque | 9.2 ft-lbs @ 2800 RPM |
| Max Speed | 3600 RPM |
| Idle Speed | 1700 ± 100 RPM |
| Bore x Stroke | 70 x 55mm |
| Compression Ratio | 8.5:1 |
| Start Type | Recoil |
| Cooling System | Air Cooled |
| Fuel Type | 87+ Octane Unleaded Gasoline |
| Fuel Tank Capacity | 0.9 gal (3.6L) |
| Oil Type | 10W-30 |
| Oil Capacity | 0.6L |
| Low Oil Shutdown | Yes |
| Oil Sensor | Yes |
| Throttle Control | Manual |
| Choke Control | Manual |
| Governor System | Centrifugal Mechanical |
| Carburetor | Float |
| Ignition System | Mechanical |
| Bearing Type | Ball |
| Crankshaft | Q-Type |
| Cylinder Bore | Cast Iron |

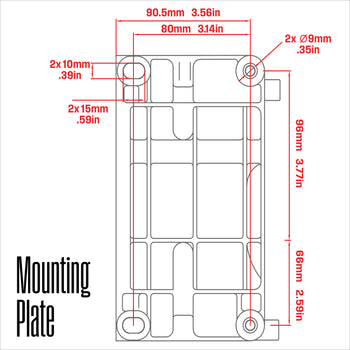

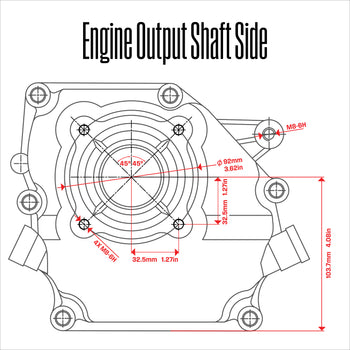

| Mounting Base Pattern | 162 x 80mm |
| Bolt Circle Tapped Size | 4 x M8-6H |
| Auto Compression Release | Yes |
| Muffler Included | Yes |
| Air Filter | Single Element |
| Spark Plug Type | F7TC |
| Spark Plug Gap | 0.7 to 0.8mm |
| Valve Clearance - Intake | 0.08 to 0.12mm |
| Valve Clearance - Exhaust | 0.13 to 0.17mm |
| EPA Compliant | Yes |
| CARB Compliant | No |
| Product Dimensions | 13L x 14.75W x 14H in. |
| Product Weight | 32.6 lb. |
| Dry Weight | 32.6 lb. |
| Packaging Dimensions | 14.5L x 15.9W x 16.7H in. |
| Shipping Weight | 34.2 lb. |
| UPC | 850079572010 |
